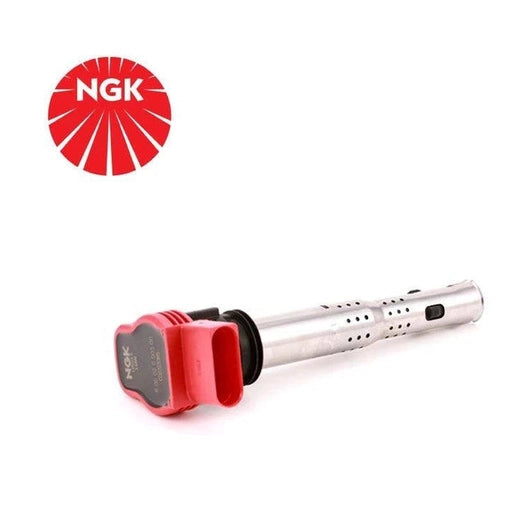

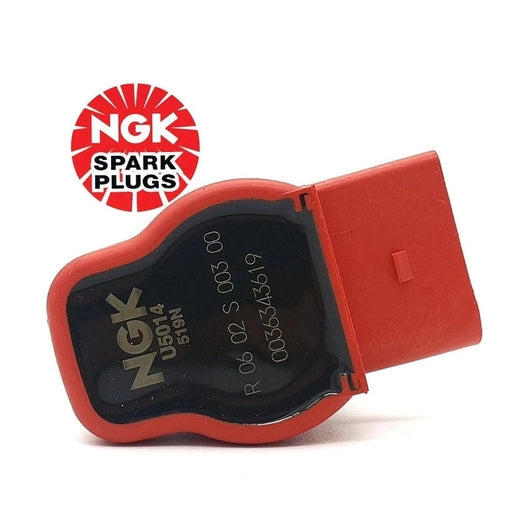

The NGK U5014 Red ignition coils , designed specifically for the Audi R8 , have been optimized to maximize the ignition efficiency of the 2.0 TFSI engine , whether it has undergone reprogramming or is in its original configuration. These advanced components ensure more efficient combustion, thus improving the overall performance of the vehicle.
Featuring a pencil-type design, these R8 coils provide remarkable consistency in ignition quality , exceptional durability and powerful spark production for the spark plugs, far surpassing the capabilities of standard coils supplied by the manufacturer. They are also an ideal solution for replacing faulty coils, restoring optimal engine performance .
When combined with IRIDIUM spark plugs, these R8 NGK U5014 coils contribute to better engine performance while extending engine life, providing a more enjoyable and economical driving experience in the long run.
Before finalizing your purchase, it is essential to check the compatibility of the connector as well as the ignition coil mounting system on the cylinder head, which can be fitted or screwed depending on the model of your vehicle.
If you have any questions about installation or compatibility with your Audi R8 , please contact us with your car registration number for personalized assistance.
Guaranteed authentic NGK product – Reference: NGK coil U5014 or 48041 (replacing U5015).
Benefits of R8 NGK U5014 Ignition Coil - For 2.0 TSI and TFSI
-
Optimized Performance: Generates a powerful spark for your spark plugs, outperforming stock coils for more complete combustion.
-
Superior Reliability: Engineered by world-renowned NGK for consistent ignition quality, even under demanding conditions.
-
Perfect compatibility: Plug-and-play for 2.0 TFSI/TSI engines of VAG vehicles (Audi, VW, Seat, Skoda), including the Audi R8
-
Pencil-style design: Easy installation and racing look with its iconic red color, ideal for enhancing your engine compartment.
-
Ideal for modified engines: The NGK U5014 ignition coil supports E85 reprogramming and conversions, perfect for engine preparations.
How to install NGK U5014 ignition coil
This CustomPlus tutorial explains how to replace the spark plugs and ignition coils on a 2.0 TFSI EA113 engine , found in many VAG Group vehicles such as the Golf 5 Gti. Before starting, it is advisable to disconnect the battery to avoid any electrical problems.
The first step is to remove the ignition coils . First, you need to unclip the electrical connectors. A trick to removing the coils without special tools is to use two plastic clamps under the coil head to lift it. It is noted that the coils are easier to remove when the engine is hot, but be careful not to burn yourself.
Once the coils are removed, the next step is to remove the spark plugs . It is important to use a special spark plug socket, usually 16 mm, which has a rubber part to hold the spark plug. The socket is inserted by hand with an extension to feel the alignment. After loosening the spark plug with a ratchet, the final removal is done by hand, leaving the spark plug in the socket.
To install new spark plugs, they must be properly positioned in the socket and inserted into the well. Initial tightening is done by hand using the extension to avoid straining the threads. Final tightening should follow the instructions on the spark plug box, often a quarter-turn after feeling resistance.
Finally, installing the new R8 NGK U5014 ignition coils is simple: simply insert them one by one and push them firmly to ensure a good connection with the spark plug. Next, reattach the NGK U5014 coil harness and check that the connections are secure. Finally, reconnect the battery ground.
Lifespan of an R8 NGK U5014 ignition coil
Typically, an NGK U5014 coil can last between 50,000 and 100,000 km , or about 5 to 7 years under normal usage conditions. However, signs like misfiring, loss of power, or increased fuel consumption may indicate premature failure.
Tips to extend the life of an R8 NGK U5014 coil:
-
Check the condition of the spark plugs regularly, as worn plugs put more strain on the coil.
-
Make sure the vehicle's electrical system is in good condition (battery, alternator).
-
Avoid overheating the motor, which can damage the coil.
If you suspect a problem, diagnosis with a multimeter or by a professional is recommended. Replacing an original coil with the NGK U5014 ignition coil ensures optimal performance.
